Sensors

Our sensor component range serves the system integrator market. We provide thermal imagers and
detectors or installation onto fixed sites, vehicles, USVs, UGVs and drones.

Products we offer:

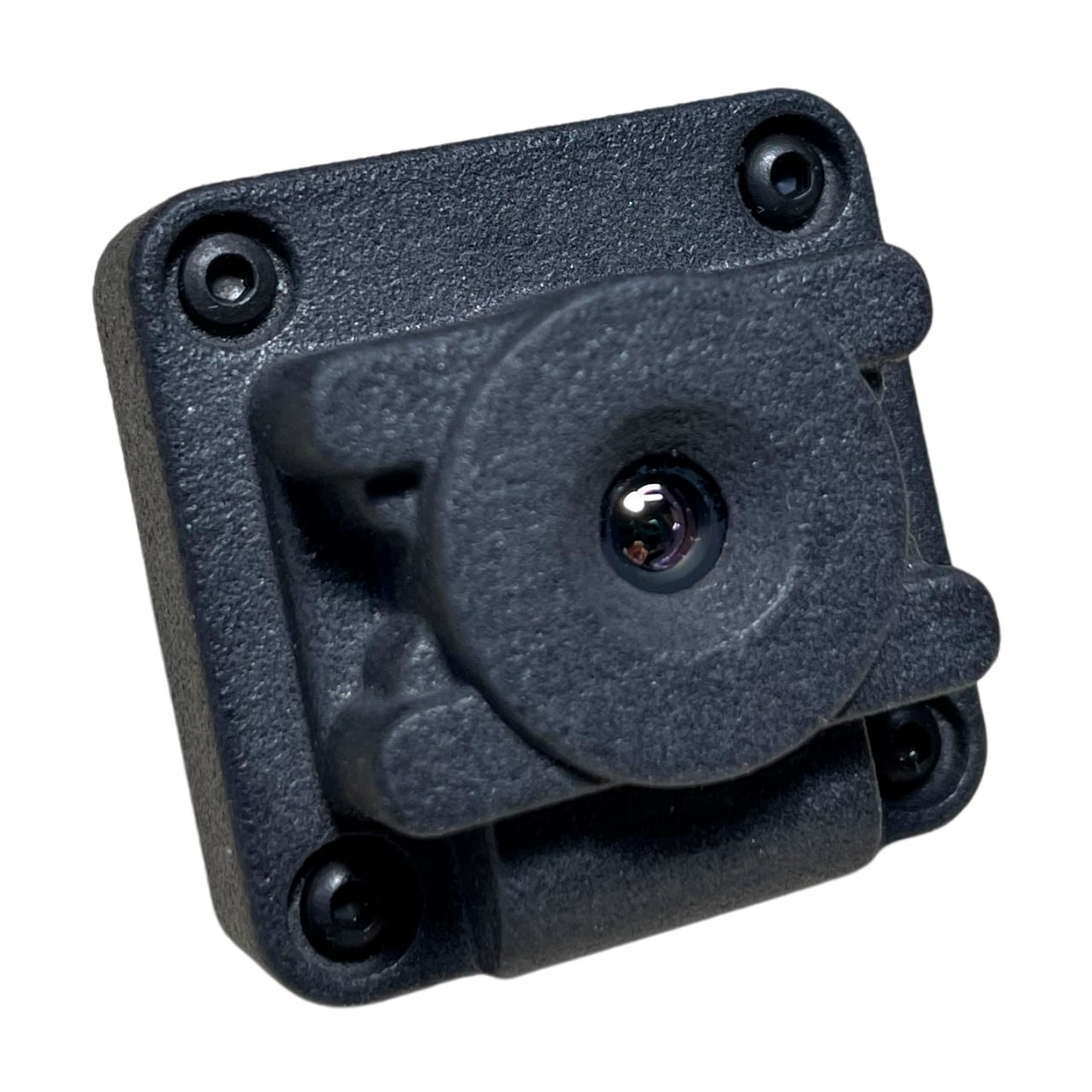

Product : FPV THERMAL IMAGER

The FPV thermal imager is for integration onto drones.

Specifications

Detector type:

Uncooled VoX

Resolution

256x192

Wavelength range

8 ~ 14μm

NETD
(Noise Equivalent Temperature Difference)

＜50mK @25℃，F#1.0，25 Hz

Video latency

~80 ms

Frame Rate

≤25 Hz

Control functions
(from RC)

Shutter: manual or automatic
Brightness, contrast, colormap
Modes: navigation, hunting, extreme weather

Radiometric Accuracy*

WR:Normally ±2℃ or ±2% CR:Normally ±0.5℃

Input Supply Voltage

5-9 V

FoV (field of view)

56°* 42°, IFOV:3.75 mrad

Non-operating Temperature range

-45℃~85

Optimum Operating temp. Range

-40℃~80℃ (Imaging) -10℃~75℃（WR）10℃~50℃（CR

Output

Analog CVBS;

Digital USB (~150 ms latency, working to improve it soon);

Coming soon: digital MIPI DSI


Control interface
(connect to FC)

UART using Mavlink

Dimensions

31.79 x 31.68 x 29.39 mm

Weight



16 g

Includes

  • 1x Thermal Imaging Camera

  • 1x Cable for Connection
